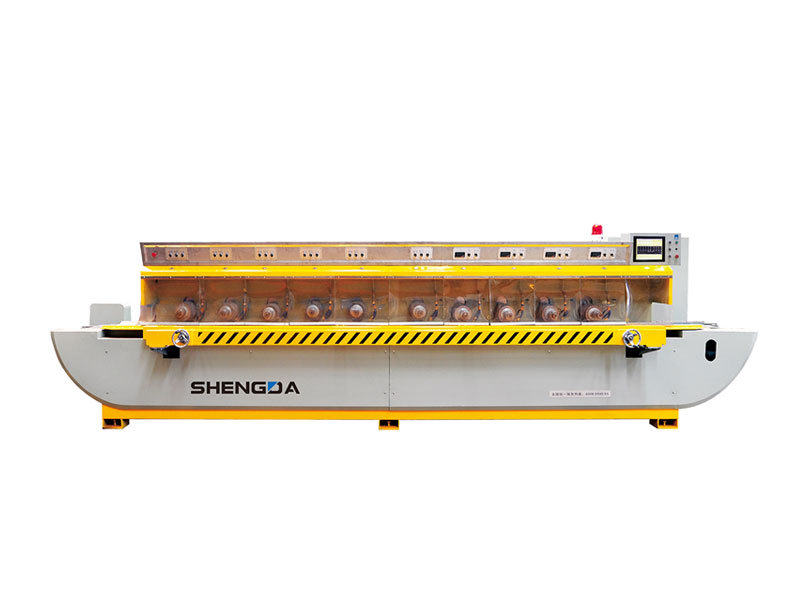

CNC Full Automatic Profiling Machine
This is a Special-shaped stone line products are a kind of decorative building materials products that are widely used. Their cutting and processing have been very popular, but their special-shaped surface polishing mainly relies on artificial work, and the process is seriously lagging behind. This machine is an ideal equipment for machining irregular lines.
1, Use computer control, horizontal integrated structure, the use of diamond grinding wheel molding, grinding wheel fine grinding, resin grinding wheel polishing, stone special-shaped lines to achieve continuous one-time processing.
2, Use compound processing mode, forming, grinding, polishing abrasive linear arrangement, the use of plate belt conveyor automatic feeding mechanism, to achieve the shape of the line forming processing and surface grinding processing.
3, The machine adopts one frame structure, each process orderly arrangement, compact structure;
4, The grinding tool lifting adopts digital control, grinding wheel grinding force can be automatically compensated through the control system;
5, Can hang grinding wheel diameter 150-200mm, processing thickness 20-80mm, processing width 60-200mm;
6, Use PLC control system, through the human-computer interaction interface input running parameters, processing automation, programming; Suitable for stone line shape surface forming, grinding processing.
- Information
- Video

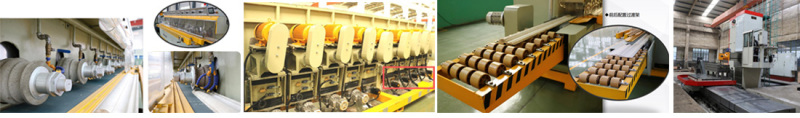

The whole machine adopts one frame structure.
The conveyor belt moves continuously in a straight line through two rollers.
10 groups of grinding tools can be independently adjusted in horizontal direction and vertical direction.
10 The composition, polishing and grinding tools are arranged in a straight line, and the plate belt conveyor is used for automatic feeding.
Guide plate adjusts positioning by hand wheel.
Each group of grinding tools moves up and down through the lead rod on the guide post to adapt to line processing with different thickness.
Front and rear configuration of transition frame
The working face of the frame is processed by a large machining center to ensure the flatness of the working face of the frame.
