Profile Shaping Machine

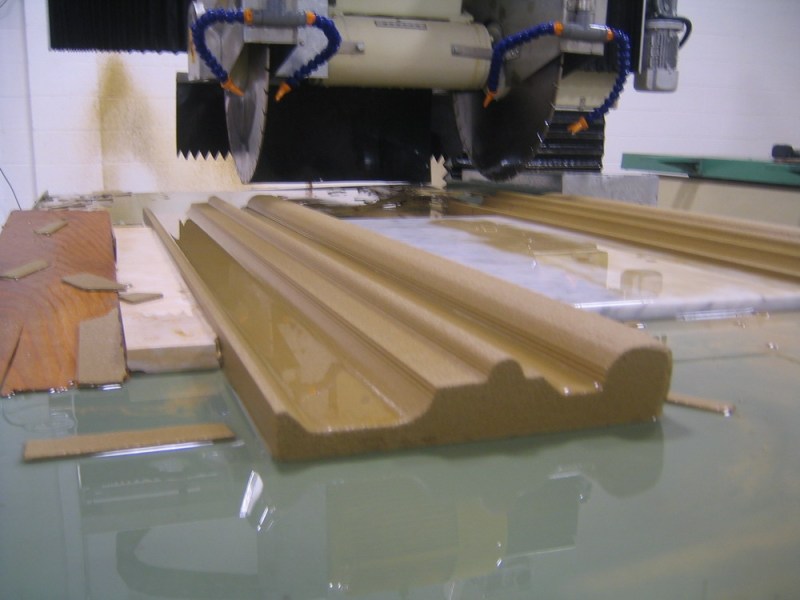

1-Stone special-shaped line is one of the most widely used building materials products, special-shaped line cutting machine is the necessary processing equipment for this kind of product processing.
2-The mechanical structure fixed beam cantilever type, double Z axis type.
3- Can put double disk saw blade, saw blade diameter 350-600mm, table width 1200mm.
4- Use PLC control system, touch screen operation.
5-Can be optional arc plate, circular railing cutting table.

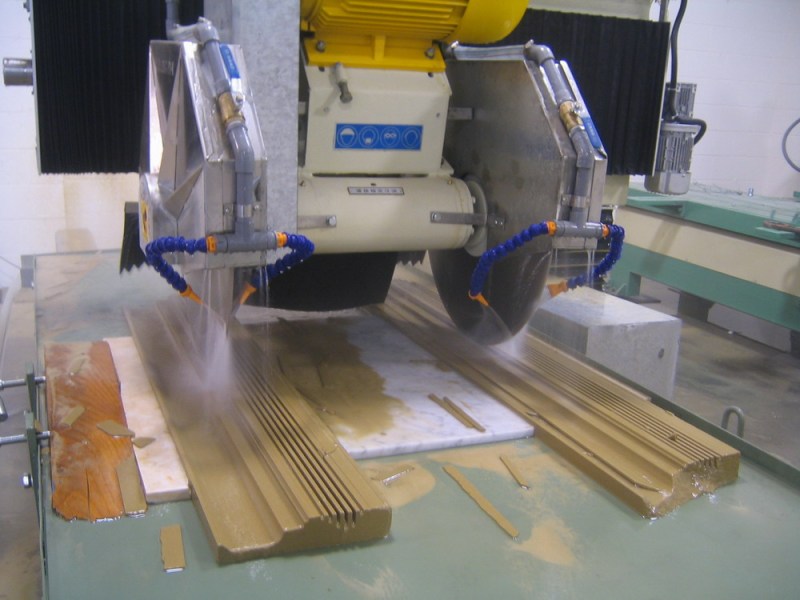

6-Can realize double knife synchronous cutting, can process 2 pieces at the same time. if Single cutting can achieve large size workpiece processing
- Information
- Video

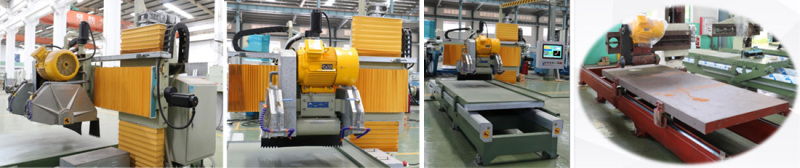

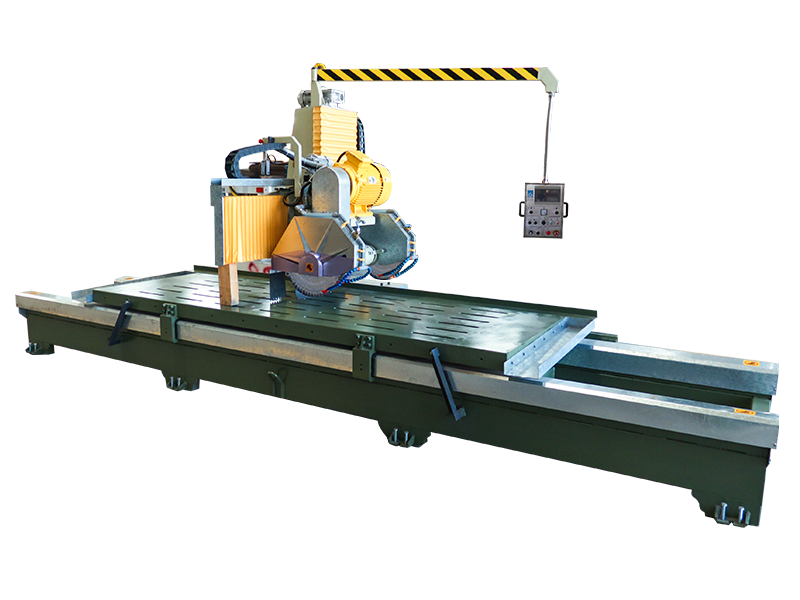

Integrated mechanical structure, vertical cantilever lifting type.
The cutting saw blade is installed in the headstock, and the headstock is installed in the horizontal dragging plate through the lifting and lifting plate, and the horizontal dragging plate is installed on the transverse arm, which can be moved up and down and around.
The nose moves left and right through the lead rod on the cross arm, and the cross arm moves up and down through the lead rod on the column.
The four V wheels under the working table are driven by the gear tooth row on the oil-immersed guide rail of the machine base to realize the straight back and forth movement of the working table.
